回覆 (88): WTH!
4'C in Discovery Bay. WTH!
bobui
14-02-11
08:56:28
回覆 (87): Cartridge alignment - the old fashion way!
Too bad it didn't get any 82' lor!

Yes, there are too many variables that play a part in cartridge tracking.
bobui
14-02-10
18:13:32
回覆 (86): Cartridge alignment - the old fashion way!
>And by then, my cartridge alignment skill may have improved to a new level.<
___________________________________

Or your cartridge needs aging! :-)

thekong
14-02-10
16:33:29
回覆 (85): Cartridge alignment - the old fashion way!


What I want to say is this: don't be overly concerned with absolute set up procedures!

Cartridge setup is really an art of compromise. There are simply too many variables that defy all
meaningful scientific calculations. Theoretically speaking, for instance, you'd have to re-align your
cartridge when you move the vertical tracking angle to suit the 180g re-issues.

Nevertheless, it doesn't hurt to understand the geometry behind, and better still, to make the best use
of everything to get the best out of the cartridge you've bought. Cartridges are not refundable after all.


limage
14-02-10
16:11:58
回覆 (84): Cartridge alignment - the old fashion way!
What would you do then if you find audible distortion despite strenuous fine-tuning up to 1/10th of a milli-
meter at the inner grooves?
---------------------------------------------------------

Move the cartridge to a different arm lor. If its still not working, I would detach the cartridge and put it inside a box and hiding it somewhere in the house, in a drawer, a closet or a wardrobe that doesn't below to me and try my best to forget about it completely.

After one, may be two winters, my CEO could one day scream unexpectedly about a cartridge she has just discovered from her belonging during an annual house clean. By then, my mind would be fresh and surprisingly happy to take up this "new" cartridge that I don't even remember if it was mine or belong to a friend.

Always fancy trying out something new that doesn't seems to belong to myself, ah ah! And by then, my cartridge alignment skill may have improved to a new level.

Surprise surprise!
bobui
14-02-10
15:33:49
回覆 (83): Cartridge alignment - the old fashion way!
>A deviation of 1 degree is enough to foul all your alignment efforts.<
_______________________________________

Very true!

Unfortunately, deviation of up to 6 degrees is not unusual ! :-(


thekong
14-02-10
14:54:52
回覆 (82): Cartridge alignment - the old fashion way!


bobui,

Please bear in mind that most elliptical styluses may not be accurately orientated. A deviation
of 1 degree is enough to foul all your alignment efforts.

And the irony is, the more expensive the cartridge, the less accurate its diamond is set!

With pivot arms though, there are still 2 points where you would have zero error. If you are using parallel
trackers, you would end up with almost constant tracking distortion.

What would you do then if you find audible distortion despite strenuous fine-tuning up to 1/10th of a milli-
meter at the inner grooves?

My method is to twist the cartridge slightly at the head-shell seat. If more offset doesn't help, try the
other way. Believe it or not, it works.


limage
14-02-10
14:22:15
回覆 (81): Cartridge alignment - the old fashion way!
I mostly concern about distortion when the cartridge is approaching the inner tracks because that is where I sometimes hear distortion when the cartridge is not properly set up such as incorrect over hang. Worst if the cartridge is no new and the suspension has started deteriorated.

When a cartridge is brand new, the stylus tip is sharp and suspension works normal, the tracking ability is high. Alignment issues become less of a problem when compare to a used cartridge. In another word, using your ears to examine distortion on a new cartridge become less obvious!

1mm sound ok to me also. To be honest, most of the time, I just try my best to get the accuracy as close as possible when setting up tonearm and cartridge and sometimes I just repeat the alignment procedure a few times to bring it down to a closer tolerance.

VTA and bias force is where I agree cannot purely base on scientific measure.

Take bias force as an example. The pulling force is greater towards the inner tracks then the outer. There is very little chance a single tracking force can be catered equally to the whole recording.

For effective arm length and overhang, I mostly rely on manufacturer provided figures.
bobui
14-02-10
13:06:59
回覆 (80): Cartridge alignment - the old fashion way!
>Did you use the Lofgren, Baerwald, or Stevenson alignment curves?<
______________________________________________________________

I was just pulling your legs on that one! :-)

These are my thoughts on the issue:

1. With a normal pivotal arm, you can, at best, only have 2 null points. The difference alignment curves just minimize the distortion in different position of an LP. So, if you play many LPs, with different ending positions of the inner groove with music content, then no one set up can be ideal for every situation.

2. According to the setup jig of the Phantom arm, the overhang between 2 alignment curves (can't remember which 2) can be nearly 1mm apart! So, which one is “correct”? The answer is most likely “it depends” on what LP and which track you are listening to.

3. So, I am very skeptical when people tells me they used this super accurate arc protractor, with the lines thinner than the human hair; spent 10 hours or more to align the cartridge, and got dramatic improvement on the sound! Well, unless you listen to only 1 track on one particular LP, any alignment is just a compromise!

4. With the Phantom example about, my thinking is any setting within that 1mm is probably acceptable, so you don't need to be ultra accurate in that setting. Yes, you may hear a difference if you use one track on a particular LP as reference, but it probably won’t be very meaningful when you play other LPs!

5. The VTF and azimuth may be more important factors in a TT setup!

thekong
14-02-10
11:56:20
回覆 (79): Cartridge alignment - the old fashion way!
Did you use the Lofgren, Baerwald, or Stevenson alignment curves?

---------------------------------------------------------------------------------------
The printed two points cartridge fine alignment in the pictures I have shown below is from the Hi Fi News test record. I am not sure if it was based on Lofgren or Stevenson.

The curves were drawn based on each tonearm manufacturer effective arm length and over hang figures.

If I remember correctly, Lofgren did offer two sets of cartridge alignment techniques. One looking more closely to inner tracking error and the other is outer and overall RMS distortion. Right?

I did read Stevenson alignment method a while ago but find that there was not a lot of new discovery that have already been explained by Lofgfren.
bobui
14-02-10
10:05:54
回覆 (78): Cartridge alignment - the old fashion way!
Thanks for your input, Daiwok!

Its good to see the growing number of protractors in the market that aim to offer an easy measure on the mounting distance of a tonearm from the spindle which I believe is the fundamental and most basic element of cartridge alignment.

I personally would aim to have the tonearm mounting as close to the suggested distance by the tonearm manufacturer before moving on to make any fine adjustment on the cartridge head shell.

The closer you can get to a correct mounting distance of the tonearm, the more possible and accurate it is for later stage precise cartridge tracking adjustment. The fact that some tonearm manufacturers went as far as from millimeter to micrometer for the mounting distance reflects the importance of a correct tonearm mounting rather than a thing you can avoid taking too serious.

"The more I look closer to the negative impact on cartridge tracking error from pivot arm, the higher the desire to opt for linear tracking".
bobui
14-02-10
09:47:42
回覆 (78): Cartridge alignment - the old fashion way!

>I have drawn two curves. One for the Morch 12" arm and the other for the 9" Alphason 100R.<
_____________________________________________

Did you use the Lofgren, Baerwald, or Stevenson alignment curves?

Also, have you considered the position of the inner most groove with music content on your LPs? ;-)

thekong
14-02-10
09:28:04
回覆 (77): Cartridge alignment - the old fashion way!
Bobui,

great post ! in the past I have used a compass as well, other helpful items include extra long plastic rulers where you can drill holes to mount.

My only comment is these measurements from the manufactures such as the mounting distance being 307.4mm and for Schick its 304.75. I mean can we really measure and mount .XXmm ? things brings up a couple of questions:
first of the stylus tip is extremely small, the actual trace of the very point of the profile, much smaller than .XXmm IMHO so the mounting is even refine that what we are measuring to.

No 2 cartridges are the same in terms of cantilever to stylus relationship. My view has always been that manufacturers provide guide notes. To accurate mount a cartridge whether alignment, VTA, VTF, SRA, even setting put the tonearm counterweight etc, are just to allow you to get good sound reproduction, not necessarily the best which fits your system. Each arm and cartridge combo needs to be fine tuned. I believe Master Limage spent over a month tuning his A90, this shows some serious dedication !

I don't disagree with him. fine tuning is torturious and painful, but the benefits can be reached. Having said that, there are also several standards used for cutting records, so sadly what may work for one cutting, distortion could be troublesome in others. Hence linear tonearm is the solution, but we just love pivot arms don't we ?

ok overhang, over hang serves 2 purposes, one that if the record has finished and you fall asleep then the stylus does not class with the spindle. The other is fine tuning of distortion, The relationship can be calculated. Check out the link below.

Some people may say analogue is a pain in the butt and inaccurate, but the journey is much more fun !

Will catch you bro when I am back in town ! right now I am in CADIVER state for a week ! 8^)

http://www.vinylengine.com/overhang_shift_calculator.php
daiwok
14-02-09
21:30:24
回覆 (76): Cartridge alignment - the old fashion way!
Final step


Here is the final picture showing the alignment for outer ring.

To me, this is the most simple method I prefer for cartridge alignment. Very basic and effective for even if I want to swap to a different cartridge. I simply use the same curve. One curve for one arm!

Old fashion to you? Feel free to comment and advise.
bobui
14-02-09
17:34:22
回覆 (75): Cartridge alignment - the old fashion way!

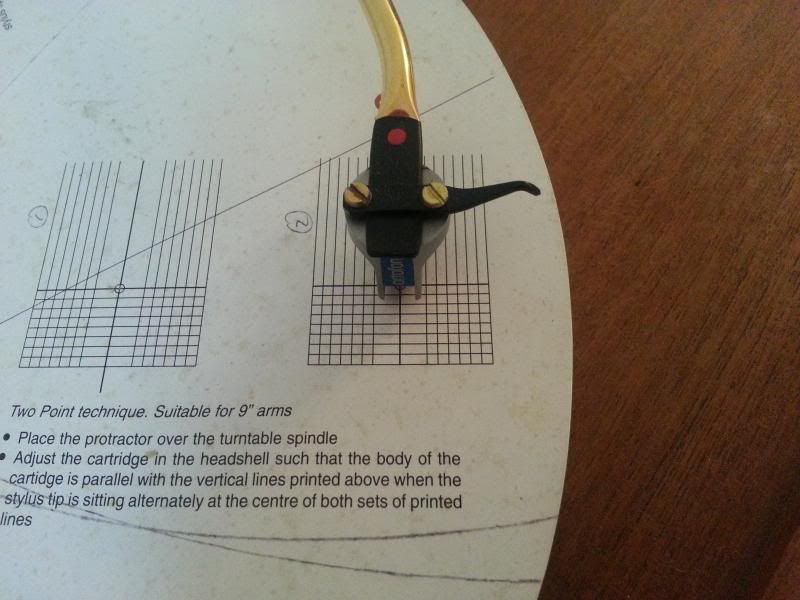

Step four

The printed rectangular lines are for final alignment of the cartridge to make sure the cartridge sits as close to parallel to the groove in the outer as well as in the inner groove.

bobui
14-02-09
17:27:11
回覆 (74): Cartridge alignment - the old fashion way!
Step three and a half

Here you see when I swing the arm towards to inner, the cartridge read and follow perfectly to the curve. Right?
bobui
14-02-09
17:21:33
回覆 (73): Cartridge alignment - the old fashion way!
Step three

To position the cartridge so that it track perfectly on the curve from outer to inner. I put soft rubber underneath the platter to ensure it doesn't spin when performing the alignment.

bobui
14-02-09
17:17:46
回覆 (72): Cartridge alignment - the old fashion way!

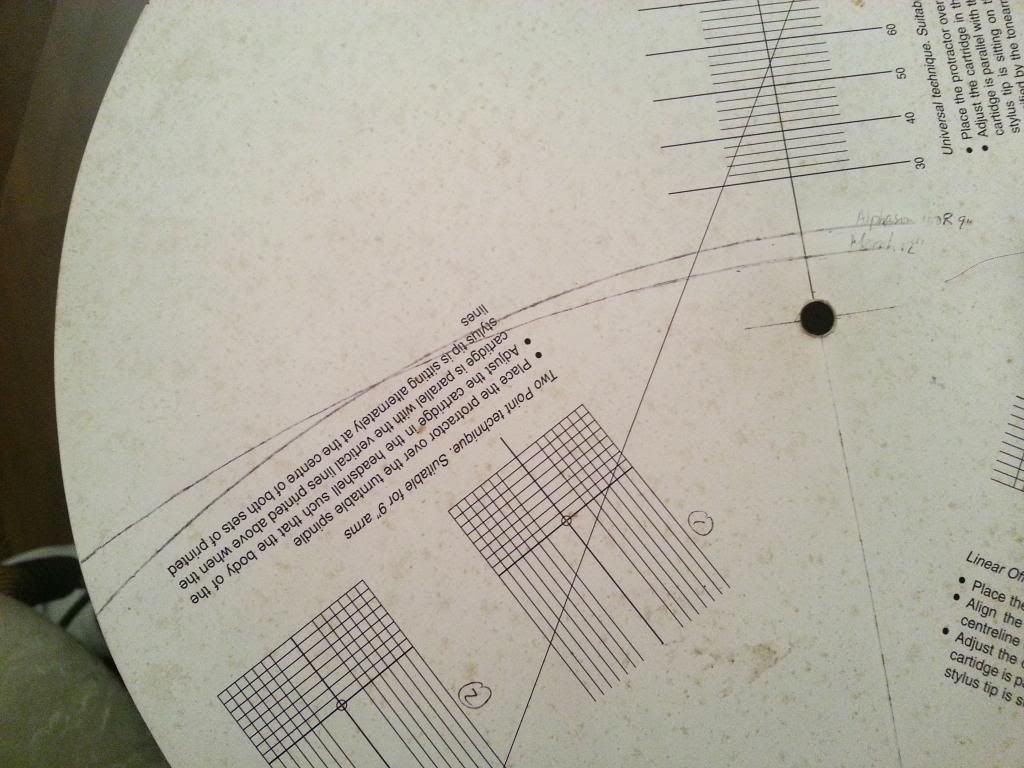

Step two

This curve you see below is most essential for cartridge alignment and is the path where the cartridge read the LP groove from outer to inner.

I have drawn two curves. One for the Morch 12" arm and the other for the 9" Alphason 100R. The Alphason curve is steeper and further out from the spindle towards the inner groove indicates it has a greater tracking error than the 12" Morch.


bobui
14-02-09
17:12:45
回覆 (71): Cartridge alignment - the old fashion way!

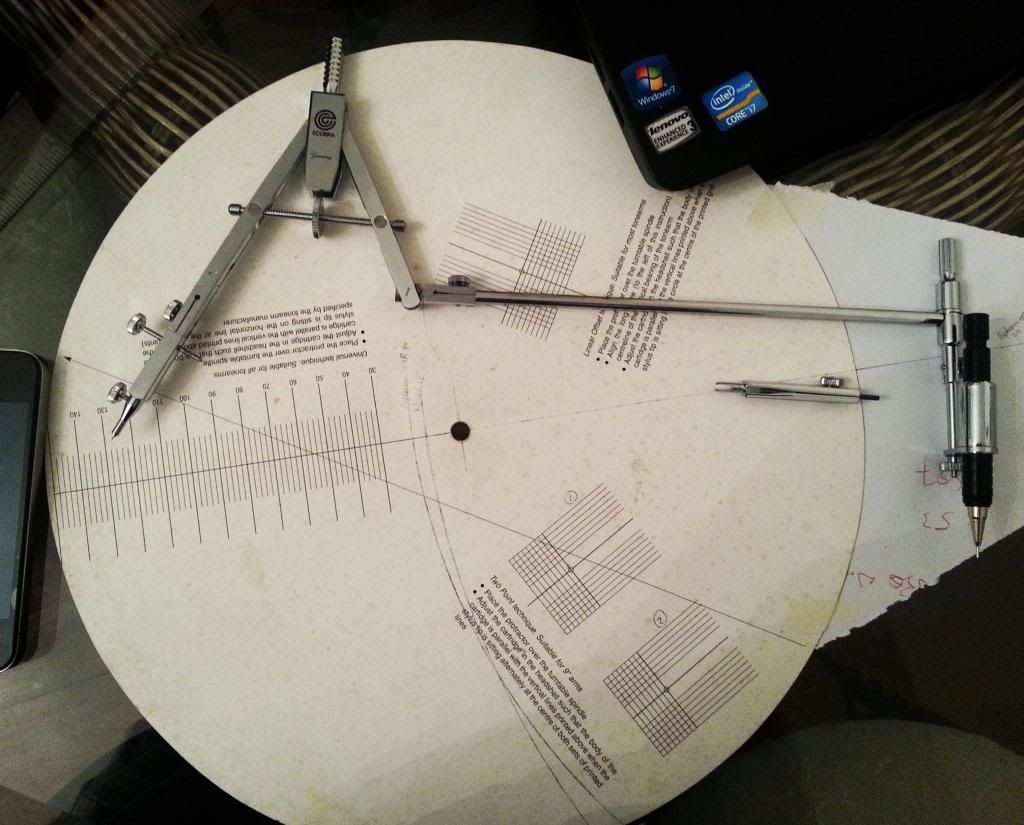

Step one

Draw a straight line across the center of the spindle and one end of the line need to go far beyond the 12" platter. The purpose is to locate where the arm should be mounted from the spindle.

I am using Morch 12" UP6 arm and the tonearm mounting distance from the spindle should be 294.1mm from the manufacturer. Measure 294.1mm from the center of the spindle and mark it down on the straight line. I call this the mounting point and in most case it is also the position of the tonearm pivot/vertical bearing.

*Effective arm length is derived from tonearm mounting point/distance + overhang and the overhang distance for Morch 12" arm is 13.3mm
Therefore: 294.1mm + 13.3mm = 307.4mm is the effective arm length

Next is the draw an arch/curve of 307.4mm from the mounting point.

bobui
14-02-09
16:54:21
回覆 (70): Cartridge alignment - the old fashion way!
Got lucky today! Been searching around for sometimes. Here I finally bought myself a set of Germany made compass "ECOBRA" for my cartridge alignment.
bobui
14-02-09
16:20:18
回覆 (69): Wish you all have more Hi Fi, more music, more biking and more fun 2014!
2013.....a year to remember for me lor! To name a few, I have changed job, first time with linear tracking, various new mc cartridges, first taste of USDA prime rib and a trip to Australia........etc.

Stay calm and keep on, sisters and brothers of 1pk! All the best in 2014!

bobui
14-01-30
18:21:23
回覆 (68): Movie and music
Rent a movie last night title "Passion". Nothing special but very good music!

One of my all time Debussy that was also in the movie.

Mysterious!

bobui
14-01-28
14:47:28
回覆 (67): ...and a wealthy 2014
Hi Fi to me is meant for music like this. Never get tired of and always longing for more. Enjoy!

bobui
14-01-15
19:14:50
回覆 (66): ...and a wealthy 2014
final decision on 2013 best bottle, do you agree ?!
----------------------------------------------------------

There are a few very dedicated whisky men at 1pk and perhaps, you shall meet them in your next HK trip.

Fault Line 32. Sound like a Club House in London or New York. Must be rare stuff!

Love to try the Springbank and probably my next targeted bottle

Lagavulin 12 Limited, just got myself a bottle. Waiting to be uncorked.

Which one you prefer?

What prize does the First Place get? Bottom up!
bobui
14-01-15
09:35:41
回覆 (65): ...and a wealthy 2014

Our scotch panel @ work had the final decision on 2013 best bottle, do you agree ?!

Note: Decision does not represent from Facebook, only honor by an individual "powder-gut" team within the company.
Cadiver
14-01-15
05:45:52
回覆 (64): ...and a wealthy 2014
award winner from modern arts society..............just look at the chimney, brilliant!

----------------------------------------------------------------------------
You are so correct lor, Derek2A3
Modern arts: surely not to be understood by anyone who is hard working, practical, realistic and true to the heart. Its for people who have too much time to day dream, right!

Chimney: It does resemble the shape of a chimney lor! Not to worry if you are not familiar with how a chimney should look like. No one in 21st modern living burn wood or coal inside a house to gain warmth in winter time, right! Even a real chimney blend it more natural to a house than this speaker lor!
Its kind of look like a hammer head shark too!

Now I know why people look at me so strangely when I tell them I am a big fan of Lowther and AER lor!
bobui
14-01-09
08:16:04
回覆 (63): ...and a wealthy 2014
Well, that's the award winner from modern arts society, sculpture section.

An outdoor movable fire place, just look at the chimney, brilliant!
Derek2A3
14-01-08
16:36:20
回覆 (63): ...and a wealthy 2014
>Americans likely have trouble to tell the difference between a lager and a beer! <
___________________________________________________

Uh........I dunno........... I just drink them all!!!!


thekong
14-01-08
16:31:29
回覆 (62): ...and a wealthy 2014
WTH is this?

bobui
14-01-08
13:32:20
回覆 (61): ...and a wealthy 2014
rustic
----------------------

A perfect choice of word to describe an Aussie. Yes, you can easily get comfort feeling from an Aussie that you probably wouldn't from an European.

==================================


if you think Brit can drink !!
--------------------------------------------------------------
Brits cant tell a Sauvignon from a Chardonnay. Neither an Aus could tell a single malt from a blend. Americans likely have trouble to tell the difference between a lager and a beer!

Who care when you are pissed or stoned anyway!
bobui
14-01-04
09:00:16
回覆 (60): ...and a wealthy 2014

>> Australians are honest rustic people and pretty easy to get along with.

... they do & they drink a whole lot more than the Brit if you think Brit can drink !!
I once met a colleaque (blonde by the way) in UK, she was from Darwin. Typical agenda, we left the office around 5 and she would down a bottle of Savingon in happy hour, then proceed to dinner at 8:30pm and down yet another bottle of something. Hit the dance floor at mid-nite and by the time we finished at 4:30am, she probably down another bottle plus a 6 pack of Barcadi cocktail, & me, I lost the ability to count hours ago ... It's around the clock but there is no way a 105 lb petite can process 3 bottles of wines in 12 hours ! & We did this probably twice a week !
Cadiver
14-01-04
04:56:55
回覆 (59): ...and a wealthy 2014


their spoken language
__________________


Well it does take quite a while to get used to.

Mate becomes Mike and when we say good day, they say “good die”.

But most Australians are honest rustic people and pretty easy to get along with.

limage
14-01-03
18:36:09
回覆 (58): ...and a wealthy 2014
like!
---------------------------------------------
I was foolish not to get a case or two and air freight home. I am in process to look for a source. Let me know how you like it, soon!

Despite the many enjoyable moment in AUS. What I really cant get along with the AUS is their spoken language lor! The vowels are pretty much not in the mouth. There is no "r" sound in a word and "a" sound like "Ae". When we say "hard". there is a r sound. The AUS would pronounced as "haad" or "haid". There is also a high rising intonation or pitch in the last word of a sentence which I find it haad to understaend!
bobui
14-01-03
16:52:39
回覆 (57): ...and a wealthy 2014
It has a very strong and smooth taste, almost like a very good Chardonnay.
__________________________________________________

like!
Derek2A3
14-01-03
16:00:58
回覆 (56): ...and a wealthy 2014
The day after the Opera house visit. I went to the Hunter Valley which is the oldest wine region in AUS. OK la! Not comparable to Bourgogne France lor! Nevertheless, the AUS do have their special technique in making Shiraz, Semillon and Sauvignon. I was more of a fan of New Zealand Sauvignon until the discovery of this particular one from Yarra Valley.

I bought a bottle back for the bros to try. It is not the usual fresh on the nose but thin on the tongue Sauvignon. It has a very strong and smooth taste, almost like a very good Chardonnay.
bobui
14-01-03
14:52:50
回覆 (55): ...and a wealthy 2014
Of the two theaters. Here is a picture from the inside of the larger one, the concert hall, mainly for classical orchestra performance.

Just the pipe organ took six years to build and tune. Its the world's largest fully mechanical organ. As you may have heard that the Sydney Opera House is a vastly over budget project that took more than a decade to build. What more unusual is that the Sutherland Opera theater is only regarded as a mid size theater and cannot be catered for large opera production such as Richard Wagner, The Ring of the Nibelung!

bobui
14-01-03
14:03:40
回覆 (54): ...and a wealthy 2014
Other than good wine and beautiful cow. Here is one of my main target in the AUS visit. The Sydney Opera House. Rather than showing you the many spectacular landscape view of the house you probably have seen of the hundreds plus, here is one I find most dawning!

The Sydney Opera House has two main theaters. The smaller one which is mostly scheduled for opera throughout the year has been renamed in 2012 to Sutherland Opera theater.

Here is a portrait of Sutherland located next to the entrance. And for the record, she made herself famous not from first performing in the Sydney Opera house but at Covent Garden lor!
bobui
14-01-03
13:45:52
回覆 (53): ...and a wealthy 2014
How about some quality red meet before the Whisky. Quality beef is very reasonable priced in AUS! As can be seen below chilled Wagyu Kobe at 59.50 per kg or roughly HK$54 per 100 gram. And that's Striploin!
bobui
14-01-03
10:20:41
回覆 (52): ...and a wealthy 2014
Long time no see! Here I brought back two bottles for the brothers. See you soon!

A triple cask and a quarter cask
bobui
14-01-03
09:50:08
回覆 (51): Happy Christmas ...


話時話 十二年行價106花旗大洋仲貴過十六年,典解?
-------------------------------------------------------------------------

I think ISLAs are measured by strength and flavour.
The 12 yrs is an explosive cask strength
evp1312
13-12-27
11:47:43
<   >   1 2 3 4 5 6 7 8 9 10 11 12
